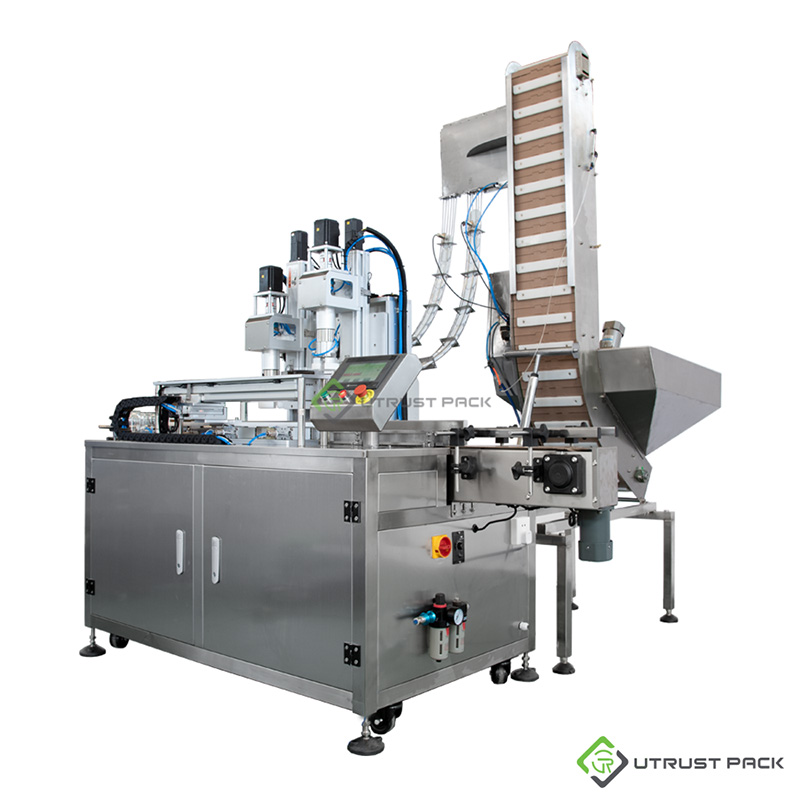

2 Head Glass Jar Twist Off Capping Machine Glass Bottle Screw Capper for metal cap, lug cap, plastic thread cap and so on
2 Head Glass Jar Twist Off Capping Machine Glass Bottle Screw Capper
Parameter For 2 Head Glass Jar Twist Off Capping Machine Glass Bottle Screw Capper
Applicable cap diameter | 30-90mm (Adjustable) |
Applicable bottle height | 130-180mm (Adjustable) |
Capping mode | Servo motor control |
Capping speed | 15-40 bottles/min (speed can be improved by adding extra capping head) |
Capping head | 2 (2-3 head could be chosen) |
Air source | 0.6-0.8Mpa |
Power | 2kw |
Voltage | 220V,50Hz |
Weight | 400kg |
Size | 3000(L)*1300(W)*2160(H)mm |
Specification
1. XYZ axis robot arm is designed to move and grasp the cap onto the jar accurately;
2. Special design of the hand-simulated screw capping fixture to use constant power to screw capping the caps;
3. Servo motor for perfect torque feedback control to twist-off and tighten the cap onto the jar to avoid broken of caps;
4. Applicable for different shape of bottle(by changing the bottle gripper) & caps (by changing the chuck head).
5. Adopt 304 stainless steel construction, in line with GMP requirement;
6. Equip with the vibrate caps feed / caps elevator, no bottle no drop the caps.
7. Could be integrate with bottle filling machine, labeling machine to form production line
Construction For 2 Head Glass Jar Twist Off Capping Machine
Applications For 2 head Glass Bottle Screw Capper
